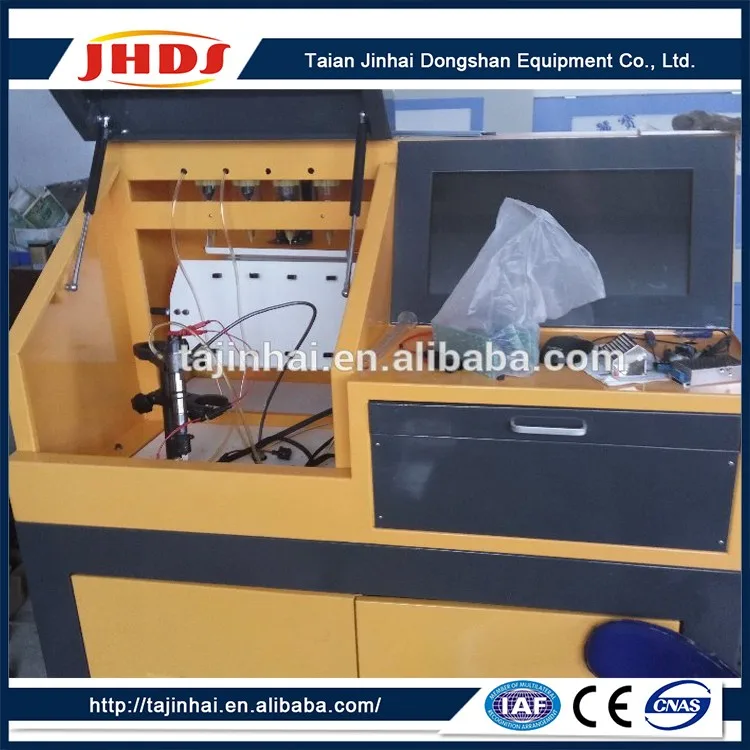

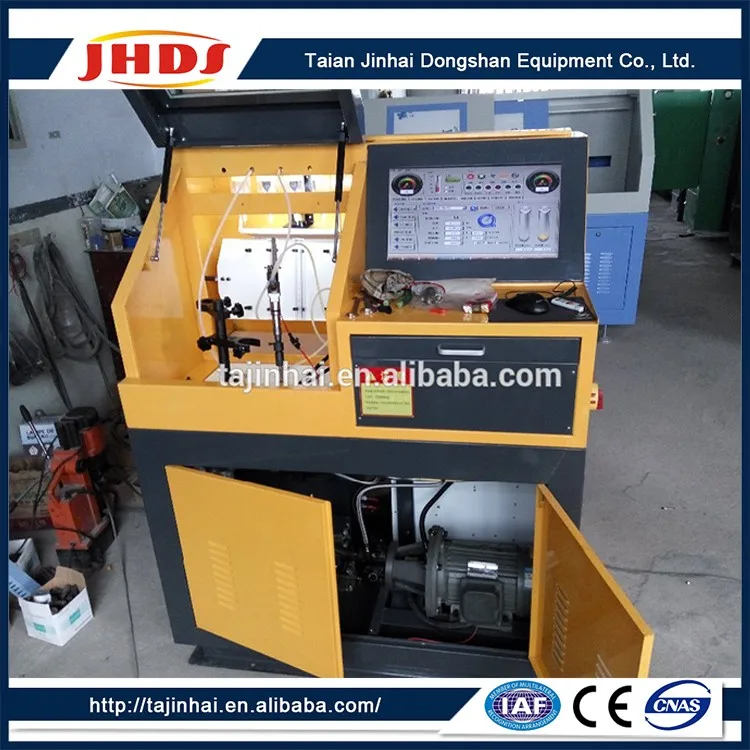

CR 200 diesel fuel bosch common rail injector electronic test bench
CR-200A common rail test device is based on the diesel engine ECU, also provides control signal of
common rail system of Bosch, Denso, Delph and Siemens etc. (the CP1 /CP2 /CP3/ HP3 /HP4 / DELPH),
drive the high pressure common rail injector to work. The user can set parameters according to their
actual situation, and save the data according to the different group, so that the servicemen do the correct
judgment and maintain of the working of common rail system. In the system, there are the maintenance
parameters of Bosch, Denso, Delph injector.
1. Support high-speed solenoid valve for common rail injector, and supports the third generation of high
pressure common rail piezoelectric common-rail injector.
2. Support various rail pressure sensor.
3. Protection function of short-circuit.
4. By dint of the power output of fuel injection pump test bench, control the speed and direction of rotation.
Independent fuel tank, collecting oil tank and electric control part.
5. Provide special fixture of testing injector.
6. Set the injector drive signal pulse width and frequency setting.
7. Set the metering valve drive signal, duty ratio setting.
8. Set the rail pressure and control the open loop and close loop.
9. Test the oil quantity of common rail injector
10. Test the backflow oil quantity of common rail injector
11. Test the degree of atomization of common rail injector.
12. Test the pre-injection of injector
13. Test the sealing of injector.
