Quick Details

  • Type: Engine Analyzer
  • Voltage: 220V/380V
  • Power: 11KW, 15KW
  • Certification: CE/ISO9001
  • Applicable Models: diesel engine of the auto
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: JHDS
  • Model Number: CR-815 common rail test bench
  • Warranty: 1 Years
  • Keywords: common rail test bench
  • Name: CR-815 common rail diesel fuel injection pump test bench
  • length: 1.9m
  • width: 0.83m
  • high: 1.55m
  • gross weigth: 820kg
  • warranty: 12 months

Packaging & Delivery

Packaging Details plywood box for common rail diesel fuel injection pump test bench
Delivery Time Shipped in 15 days after payment

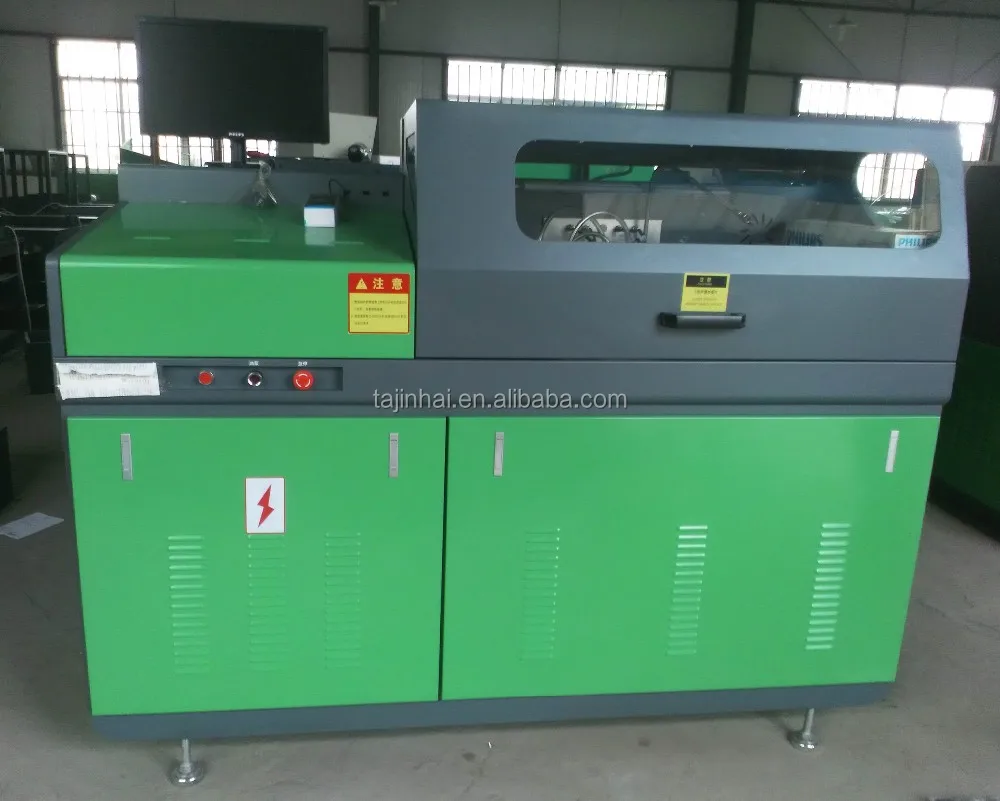

CR-815 bosch common rail injection pump test bench common rail injector test bench

Full load flow, sealing, oil return flow , flow , flowing idling pre injection of various performance

curve - automatic detection of a variety of common rail injector .



The automatic detection of a variety of common rail pump starting performance curve ,

all kinds of inlet metering valve for common rail pump pressure .

By increasing the configuration can add VP37,VP44, single pump ,

pump nozzle and other additional kit .

The professional and industrial control system (safety, stability,low failure probability) .



Product Description:

CR-815 high pressure common rail injection pump test bench is our latest independent researched special device to test the performance of high-pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS, DELPHI and DENSO. It simulates the injection principle of common rail motor completely and the main drive adopts the most advanced speed change by frequency change. High output torque, ultra low noise, rail pressure stable. It tests the common rail pump by flow meter sensor with more precise and stable measurement. Pump speed, injection time, pulse frequency, injection pulse width, oil measurement and rail pressure are all controlled by industrial computer by real time. The data is also obtained by computer.  LCD screen display makes the data more clear. The rail pressure adopts resist-vibration pressure gauge and it displays clear. Advanced technology, steady performance, precise measurement and convenient operation.



CR-815 can fulfill the remote assistance by internet and make the maintenance easy to operate.



Characteristics:
1. Main drive adopts the speed change by frequency change.
2. Controlled by industrial computer in real time, Windows operating system. Fulfill the remote assistance by internet and make the maintenance easy to operate.
3. Oil quantity is measured by sensor and displayed on LCD .
4. Drive signal can be adjusted
5. Percentage of drive signal can be adjusted.
6. Rail pressure can be tested in real time and controlled automatically, it contains the high-pressure protection function.
7. Data can be searched, printed and made into database.
8. Pulse and frequency of the injector drive signal can be adjusted.
9. Injection time can be setted.
10. Protection function of short-circuit.
11. Oil temperature is controlled by forced-cooling system.
12. Plexiglass protective door, easy operation,safe protection.
13. Measure the flux of common rail pump by flow meter sensor.

Function:
Common Rail Injector
Common Rail Pump
1. test brands:BOSCH, SIEMENS, DELPHI, DENSO.
1. test brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. test 2 pieces of injectors at a time.
2. test the sealing of common rail pump.
3. test the max. oil quantity of high-pressure common rail injector.
3. test the internal pressure of common rail pump.
4. test the cranking oil quantity of high-pressure common rail injector.
4. test the proportional electromagnetic  valve of common rail pump.
5. test the backflow oil quantity of high-pressure common rail  injector.
5. test the input pressure of common rail pump.
6. test the average oil quantity of high-pressure common rail injector.
6. test the flux of common rail pump.
7. set the high-pressure common rail injector's injection state and oil quantity measurement.
7. measure the rail pressure in real time.
8. Data can be searched, printed and made into database.
8. Data can be searched, printed and made into database.

Technical parameter:
Injection testing frequency
50~3000 rpm
Pulse width
0.1~200 ms
Continuous injection times
0~1000
Fuel temperature
40±2℃
Supply oil quantity of common rail injector
0~200cc/min 0.5%
Rail high pressure
0~2000 bar
Test oil filtered precision
Input power
380V/50hz/3phase or 220V/60hz/3phase
Oil pump speed
0~3000RPM
the main oil tank capacity
45L
Flywheel inertia’s moment
0.8KG.M2
Center height
125MM
Output power
11KW,  15KW
Overall dimension(MM)
1900*830*1550 (mm)
Gross Weight
820KG
