CR-815 common rail injector pump test bench

FOB Reference Price:Get Latest Price
$5,400.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Engine Analyzer
Voltage:
220V/380V
Power:
11KW 15KW
Certification:
ISO CE
Applicable Models:
common rail pump
Place of Origin:
China (Mainland)
Brand Name:
JHDS
Model Number:
CR-815
Warranty:
1 Years
color:
green
weight:
850KG
pressure:
2000bar
Update:
net
data:
yes
dimension:
2.2m*1.2m*1.8m
phase:
single or three
motor speed:
0-4000rpm
temperature:
40+-2
piezo:
yes
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box
Port
Qingdao
Video Description
Product

CR-815 common rail injector pump test bench


Detailed Images

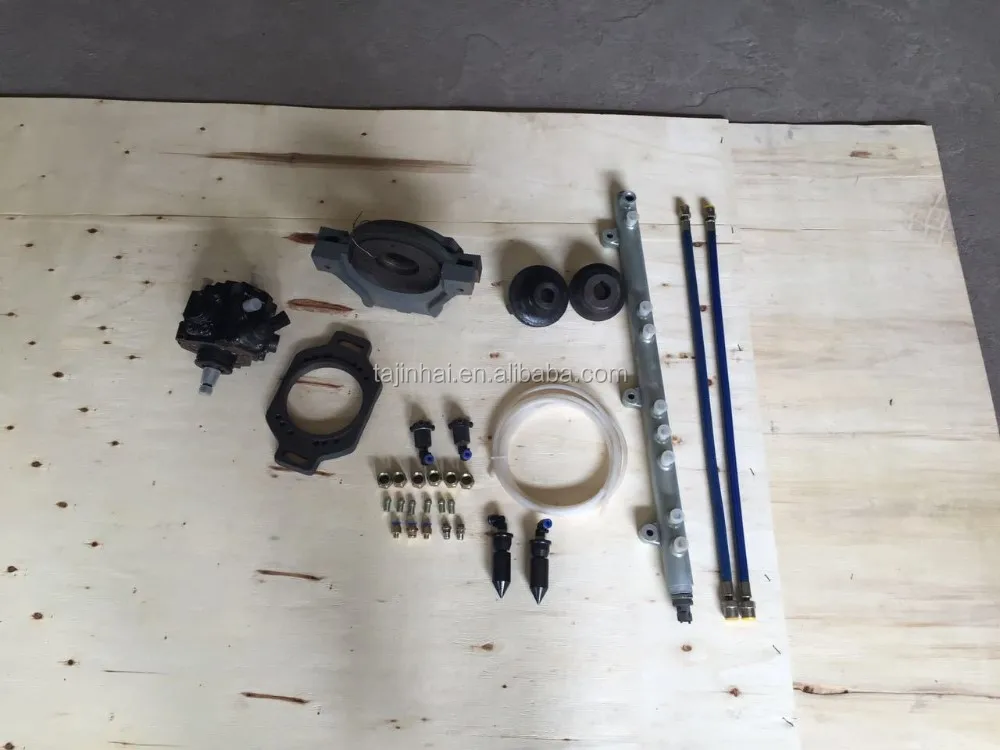

Accessory
Product Introduction

CR-815 high pressure common rail injection pump test bench is the professional test bench for

common rail system.It can test common rail pump,injector and pipe at the same time.

1. Pump test: pump flow, pressure, PVC valve working state and its own leakage.

2. Injector test: seal of the injector, injection and return quantity in pre-injection, idle,

emissions and full load working condition

3. It can test pressure sensor and DRV valve.

4. Support brand: BOSCH,DELPHI,DENSO,SIEMENS.

5. With the standard data of each pump and injector.

6. Oil pressure displays on screen.

7. Test and judge tested piece full-automaticly

Optional Fuction

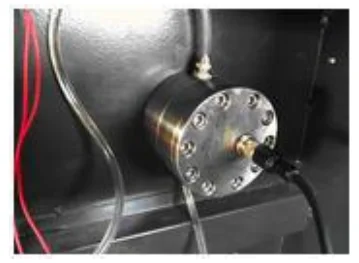

Single flow sensor

(injector diesel injection and return tested in turn)

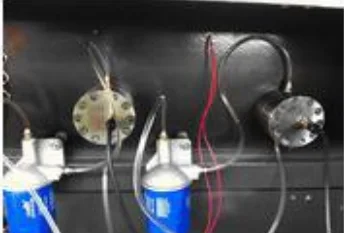

Double flow sensors

(injector diesel injection and return tested at the

same time)


Weight Sensor

(injectors tested at the same time and with lower

requirements on diesel temperature and quality)
