CR825B COMPREHENSIVE HYDRAULIC COMMON RAIL DIESEL FUEL INJECTION PUMP TEST BENCH

  • 1 - 3 Sets
    $11,700.00
  • >=4 Sets
    $11,000.00
Usage:
Auto Testing Machine
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
JHDS
Model Number:
CR-825B
Power:
Electronic
Product name:
Testing Machine
Application:
test common rail pump
Power supply:
22KW
Function:
Test Common Rail Injector
Warranty:
1 Year
Certificate:
CE ISO
Color:
Request
Supply Ability
Supply Ability:
800 Set/Sets per Year
Packaging & Delivery
Packaging Details
PACKED IN PLYWOOD BOX
Port
QINGDAO
Video Description

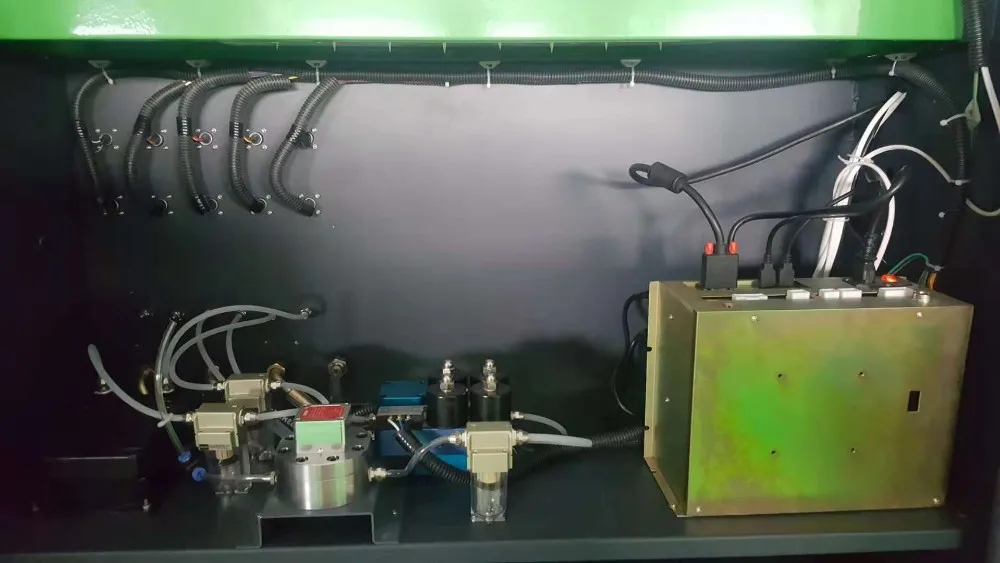

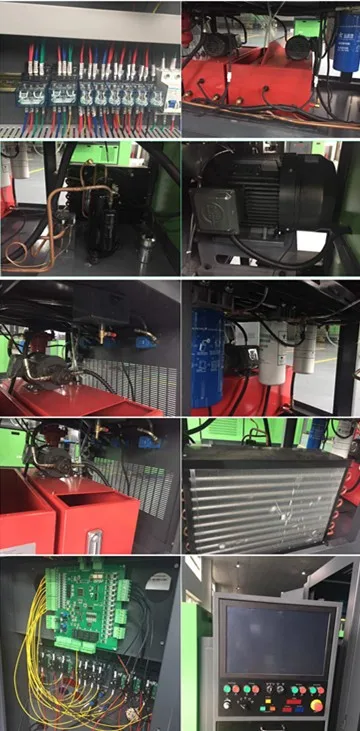

Detailed Images
Product Description
MAIN advantage



6 injectors can be tested at the same time , and 6 injectors correction codes can be generated at the same time !

Accurate response time

Generate oil volume correction code

Test PT pump

Test PT injector

Test HPI Q60 X15

Test Cummins HPI Actuator

FEATURES:

Bosch 6,7,8,9,10-digit IMA encoding generation

Bosch piezo injector IMA,ISA encoding generation

DENSO QR oil volume correction code generation

Delphi C2i,C3i encoding generation

Siemens (VDO) ICC code generation

Test common rail injector

Test common rail pump

Test EUI/EUP

Test the HEUI injector

Test HEUI actuation pump

The highest rail pressure is 2600 bar

 Drive motor 22KW

 Injection drive and system voltage monitor

 Common rail with filter function

Dual DRV configuration

High pressure filter plugging reminder function

Waste tank overflow warning

Oil tank and diesel tank strong integrated air conditioning system



TECHNICAL PARAMETERS

Main power 380V AC 220V(Optional)

Phase Three,single(Optional)

Frequency 50HZ/60HZ

Current 45A(MAX)

Main Motor 22kw

Main motor rotation 0-4000 RPM/MIN

Oil motor HP/FLOW 0.19KW/13L/MIN

Diesel motor HP/FLOW 0.19KW/13L/MIN

Control circuit voltage DC12V/24V 350W

ECU internal voltage 0-200V DC(MAX)

Oil tank volume 30L

Diesel Tank volume 52L

Tempreature control Heating/Forced cooling

Max rail pressure 180Mpa 240Mpa(Optional)

Flowmeter(injection) 4-550ml/min

Flowmeter(pump supply) 1-400L/H

Flowmeter(pump flowback) 1-400L/H

Flowmeter(oil) 5-600L/H

Center distance between motor and working bench 125mm

Weight 1100KG

Outlook size net (LxWxH)2400x1350x1880

Plywood box (LxWxH)2500x1480x2050.
